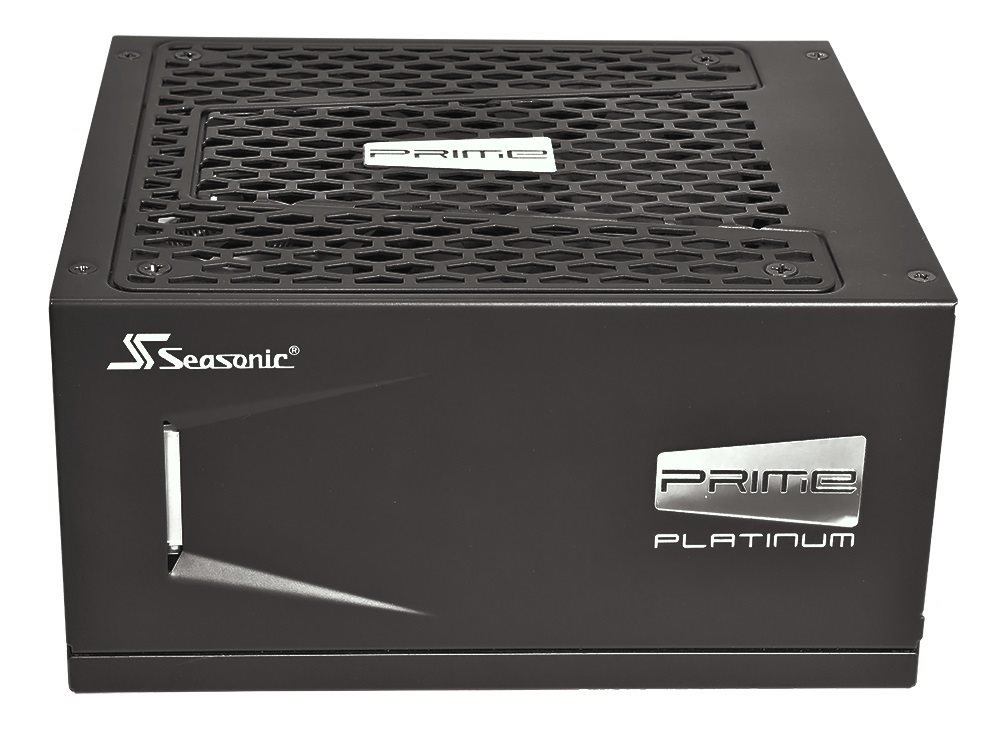

Prime 650 platinum technical specifications
80PLUS | Platinum | |
Form Factor | Intel ATX 12 V | |
Dimensions | 150 mm (W) x 170 mm (L) x 86 mm (H) | |
Fan Information | Fan Size | 135 mm |
Fan Control | Premium Hybrid Fan Control | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
Cable Information | Modularity | Fully Modular |
Cable type | Motherboard, CPU, PCIe - Black webbeb cables SATA, Molex, Floppy - Flat black cables | |
Electrical Features | Operating Temperature | 0 - 50 °C |
MTBF @ 25 °C, excl. fan | 150,000 hours | |
AC Input | Full Range | |
Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC |
Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
Warranty | 12 Years |
Prime 650 platinum
AC Input | Voltage: 100 V - 240 V | |||||
Current: 8.5 - 4 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 2.5 A | |
100 W | 648 W | 3.6 W | 12.5 W | |||
Total continuous power | 650 W |
Connector | Connector count | Cable count | Cable |
---|---|---|---|
Main Power (24/20 pins) | 1 | 1 | |
CPU (8/4 pins) | 1 | 1 | |
PCIe (8/6 pins) | 4 | 2 | |
SATA | 6 | 1 | |
1 | |||
Peripheral | 3 | 1 | |
Floppy | 1 | 1 |
