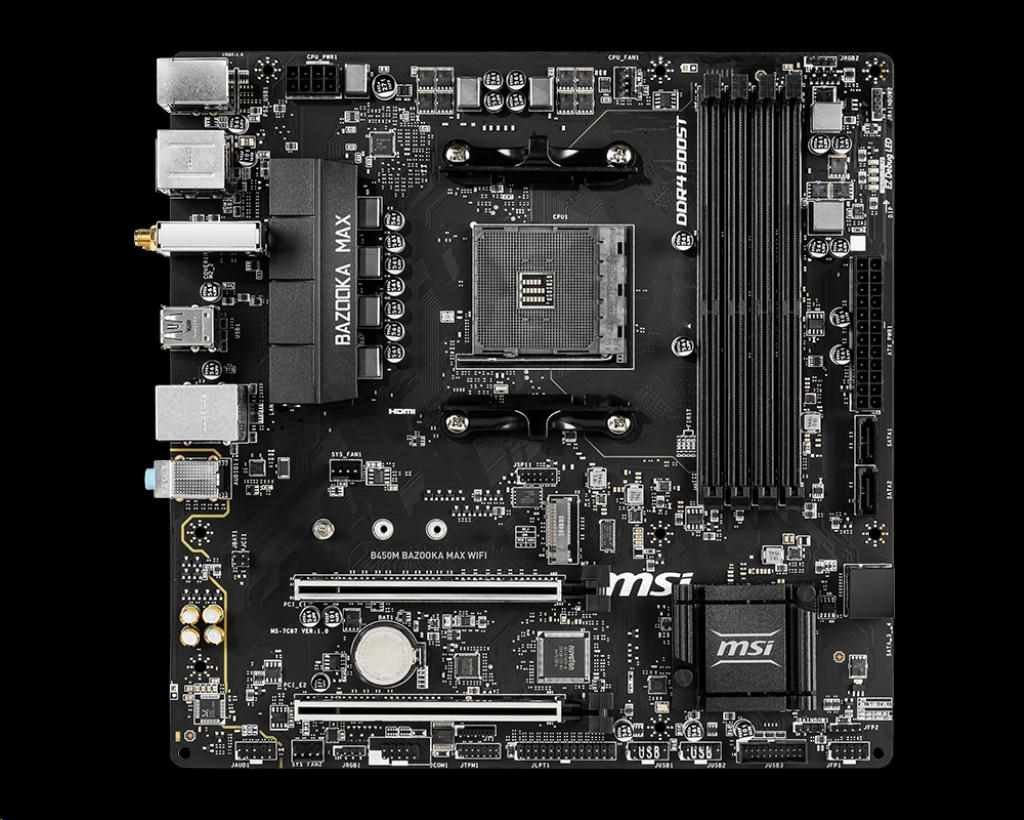

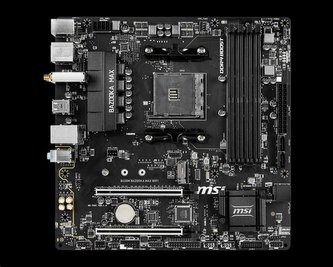

Military style with armor design for a strong gaming foundation, Core Boost, DDR4 Boost, Audio Boost, PCI-E Steel Armor, Turbo M.2 and USB 3.2 Gen1 connector
TECHNICAL SPECIFICATIONS
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required. Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| Slots | 1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors Supports x4 speed with AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 2.0 x16 slot (PCI_E2, supports x4 mode) |
| Storage | AMD B450 Chipset 4 x SATA 6Gb/s ports 1 x M.2 slots (Key M) (The speeds may vary for different devices) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) Supports 2242/ 2260/ 2280 storage devices |
| RAID | AMD B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for B450 Chipset SATA storage devices |
| USB | AMD B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 ports available through the internal USB connector) 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors) |
| AMD Processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel | |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| Wifi and Bluetooth | Wi-Fi/Bluetooth expansion module with Intel Single Band Wireless-AC 3168 chip Supports Wi-Fi 802.11 a/b/g/n/ac, single band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 1x M.2_2 Socket with E key (Wi-Fi mode) |
| LAN | 1 x Realtek RTL8111H Gigabit LAN controller |
| Internal connectors | 1 x 24-pin ATX power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 slot (Key M) 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU Fan connector 2 x 4-pin system Fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Parallel port connector 1 x Serial port connector 2 x RGB LED connectors 2 x ARGB LED connectors 1 x Clear CMOS jumper |
| Back panel ports | 1 x PS/2 Combo Port 4 x USB 2.0 Ports 1 x LAN Port 3 x HD Audio Connectors 1 x HDMI Port 4 x USB 3.2 Gen 1 Type A Intel Wi-Fi |
| Dimensions | 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) mATX Form Factor |
| Mounting | 8 mounting holes |
| Operating system | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
