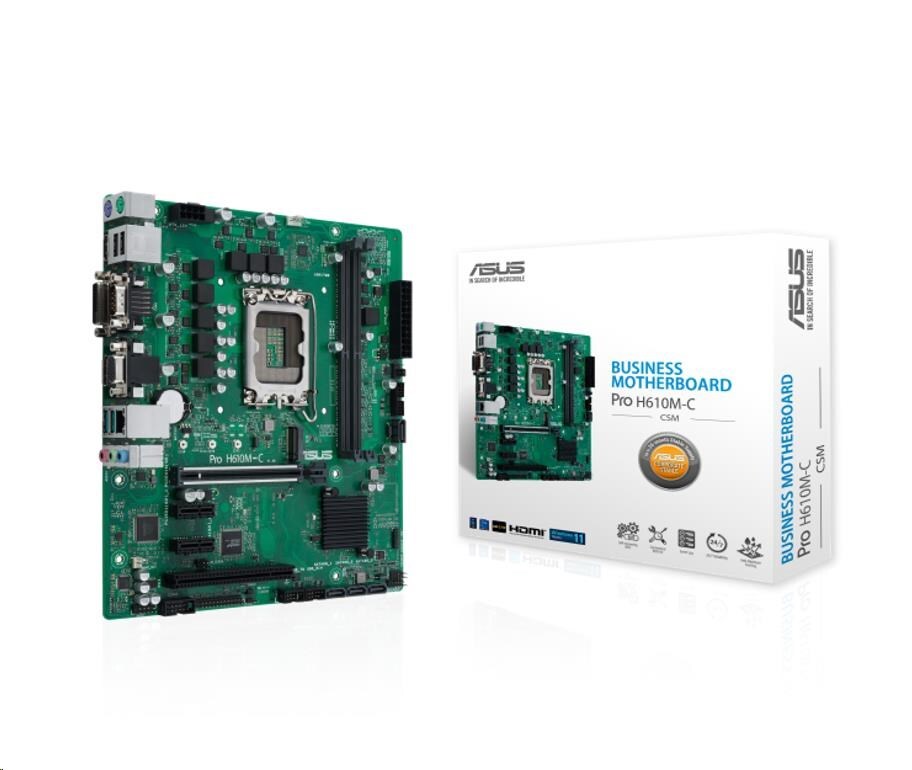

Pro H610M-C-CSM

Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability

• Intel LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2

CPU

Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort1 x D-Sub port1 x HDMI port1 x DVI-D port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports up to 3 displays simultaneously.

Expansion Slots

Intel 12th Gen Processors1 x PCIe 5.0 x16 slotIntel H610 Chipset2 x PCIe 3.0 x1 slots1 x PCI

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)4 x SATA 6Gb/s ports

Ethernet

1 x Intel 1Gb EthernetASUS LANGuard

USB

Rear USB (Total 4 ports)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x D-Sub port1 x DVI-D port1 x Intel 1Gb Ethernet3 x Audio jacks1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) port1 x COM port

Internal I/O Connectors

Fan and cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header1 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x Mono-out header(with Amp IC)1 x SMBUS header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Special Features

ASUS EZ DIY- Box HeadersBespoke Motherboard Design & Business Focused Features- Q-LED Core- ASUS Self Recovering BIOS- ASUS Event Log- ASUS Commercial BIOS kit- Anti-Moisture- 24/7 Reliability- Overcurrent Protection

Software Features

ASUS Exclusive SoftwareIT Management software supported- ASUS Control Center Express(ACCE)

BIOS

128Mb Flash ROM

Manageability

WOL by PME, PXE

Accessories

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX Form Factor9.6 inch x 8.7 inch (24.4 cm x 22 cm)
