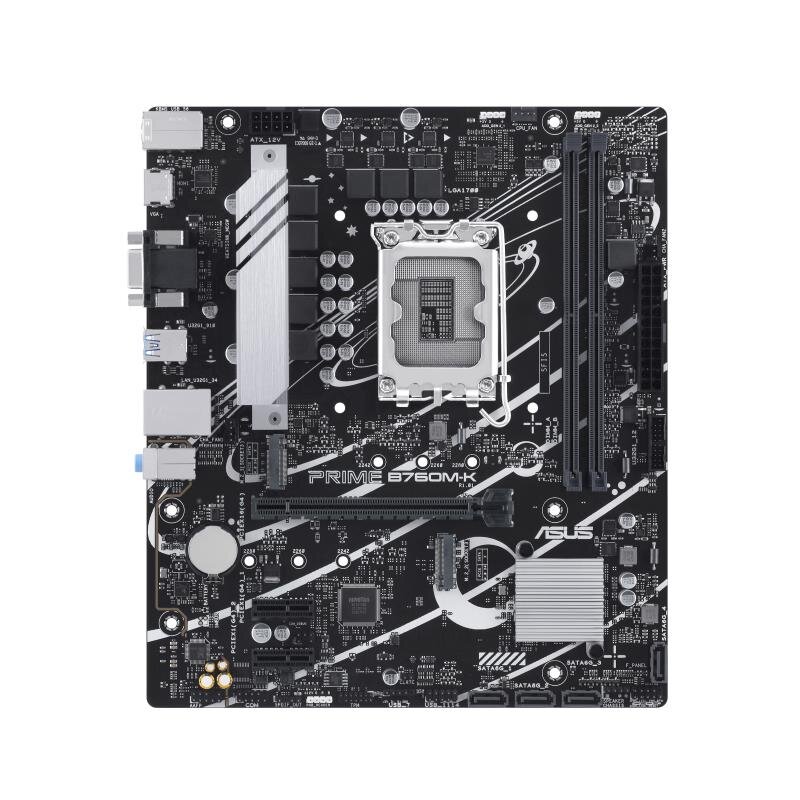

ASUS Základní deska PRIME B760M-K

ASUS Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura SyncIntel LGA 1700 Socket: Ready for 14th and 13th and 12th Gen Intel processors

• Ultrafast Connectivity:PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
• Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Supports 14th Gen Intel Core™ Processors

CPU

Intel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B760 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x VGA port1 x HDMITM port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

Intel 14th & 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel B760 Chipset2 x PCIe 4.0 x1 slots- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 5 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMITM port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- VRM heatsink designAura Sync- Aura RGB header- Addressable Gen 2 headers

Software Features

ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancellationAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 anchorsDocumentation1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

mATX Form Factor24.4cm x 21.1cm
