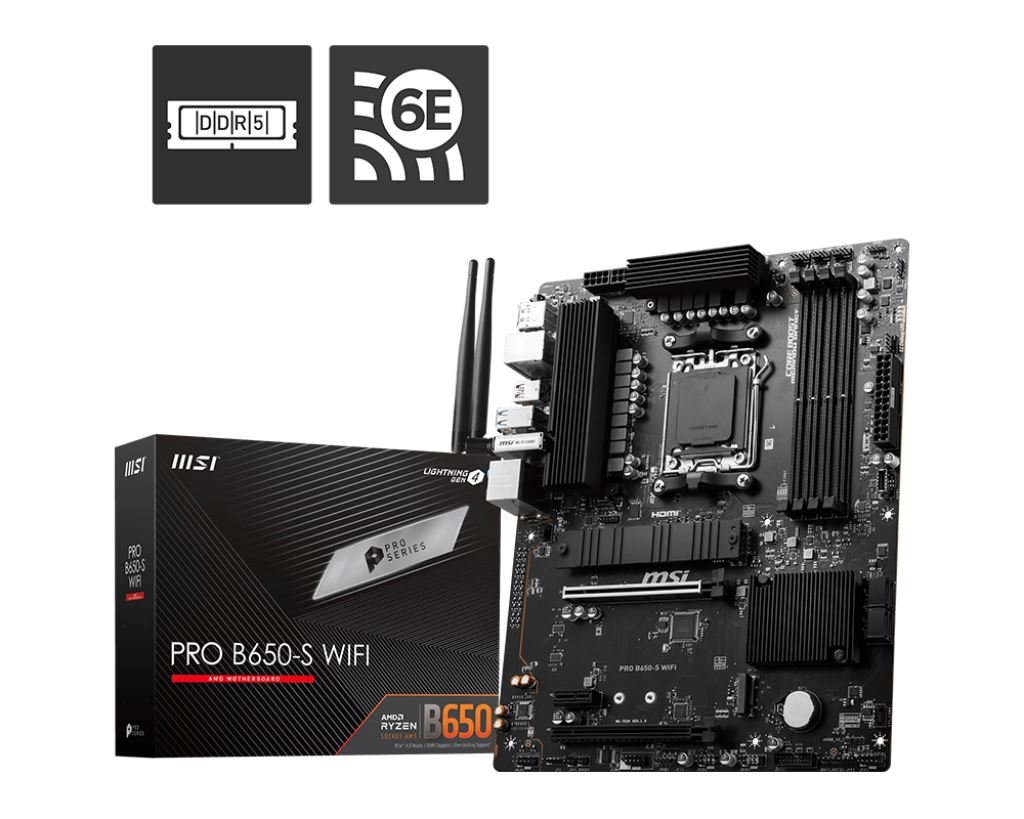

MSI PRO B650-S WIFI

PRO B650-S WIFI je navržen s množstvím flexibilních nástrojů a pohodlným řešením Wi-Fi s verzí paměti DDR5

Řada PRO je přizpůsobena profesionálům ze všech oblastí života. Tato řada se vyznačuje působivým výkonem a vysokou kvalitou, přičemž si klade za cíl poskytnout uživatelům neuvěřitelný zážitek. Uživatelé, kterým záleží na produktivitě a efektivitě, se mohou rozhodně spolehnout na řadu MSI PRO, která vám pomůže s multitaskingem a zvýšením efektivity.

CPU

Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5

CHIPSET

AMD B650

MEMORY

4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO

ONBOARD GRAPHICS

1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupports DP1.4, maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPU

AMD MULTI-GPU Support

STORAGE

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GSupports RAID 0 and RAID 1 for SATA storage devices*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek 8125BG 2.5G LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3 Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

1x DisplayPort1x 2.5G LAN1x USB 3.2 Gen 2 10Gbps (Type-A)4x USB 3.2 Gen 1 5Gbps (Type-A)2x Wi-Fi / Bluetooth6x Audio connectors1x Flash BIOS Button1x HDMI™2x USB 3.2 Gen 2 10Gbps (Type-A)1x USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

ATX243.84 x 304.8 mm

Co je v krabici

1x Quick Installation Guide

1x EZ M.2 Clip

2x Wi-Fi Antenna

1x SATA Cable

1x I/O Shield
