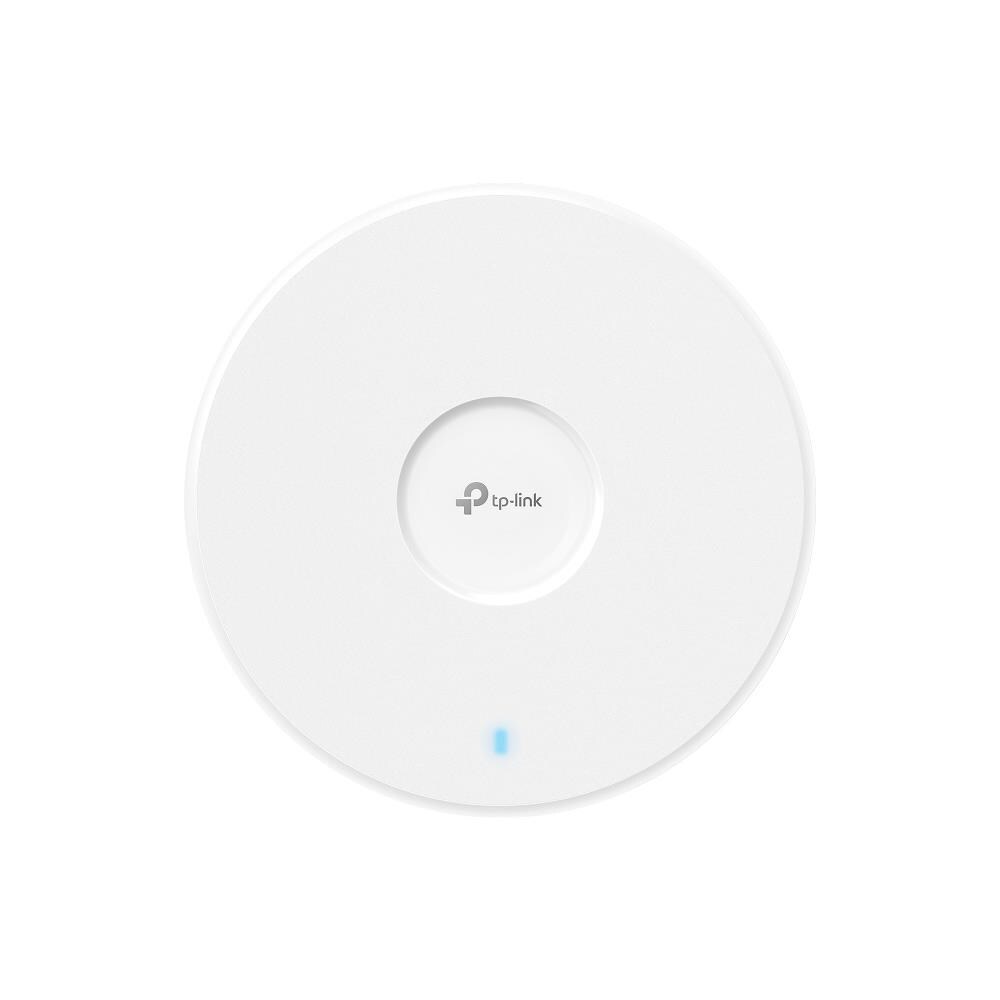

TP-Link EAP723

Přístupový bod BE3600 Tri-Band WiFi 7 pro montáž na strop

• BE3600 Dual-Band Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2.4 GHz).
• 1× 2.5G port odemyká plný potenciál Wi-Fi 7.
• Šířka pásma 160 MHz umožňuje mnohem více simultánních přenosů.
• Multi-RUs zajišťují vysoký výkon vaší sítě.
• Pokročilé funkce: Centralizovaná správa, Mesh a plynulé roaming.

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-wifi-ceiling-mount/eap723

Technické specifikace

HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Power Consumption • 18.6 W (For PoE);

• 16.0 W (For DC)

Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna Type • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 140?(1500 ft2)*Wireless Client Capacity 250+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions • 4K-QAM‡

• Seamless Roaming • MU-MIMO‡ • EHT160‡ • Mesh? • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication

Wireless Security • Captive Portal Authentication?

• Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller • Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP723

• Installation Guide • Ceiling/Wall Mounting Kit

Environment • Operating Temperature: 0 °C-40 °C (32 °F-104 °F);

• Storage Temperature: -40 °C-70 °C (-40 °F-158 °F); • Operating Humidity: 10%-90% non-condensing; • Storage Humidity: 5%-90% non-condensing;
