PCI Express balances cost, performance, compatibility and advanced features for computing platforms.

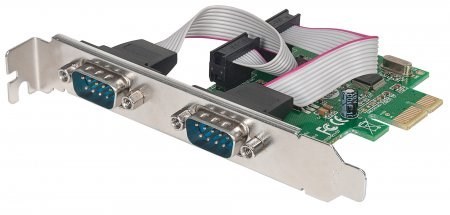

The Manhattan Serial PCI Express Card quickly and easily adds two DB9 ports to PCI Express-enabled desktop systems to connect and communicate with serial peripheral devices.

Fast Data Transfer
The Manhattan Serial PCI Express Card can be configured to achieve baud rates of up to 230,400 bps to take advantage of PCI Express data transfer speeds of up to 2.5 Gbps. Compliance with PCI Express 1.1 specifications ensures that most PCI Express Card-equipped desktop computers and devices can operate at peak performance.

Simple Installation
The Manhattan Serial PCI Express Card fits PCI Express x1, x4, x8 and x16 lane buses, and configurable COM port settings provide a flexible way to customize its use to various needs.

Features:

Easily adds two configurable serial ports to a desktop computer
Fits PCI Express x1, x4, x8 and x16 lane buses
Fits standard and low-profile PCI slots
Plug-and-play installation; hot-swappable; Windows compatible
Three-Year Warranty

Specifications:

Standards and Certifications
PCI Express 1.1
PCI Power Management 1.2
CE
FCC
Port Specifications
Two DB9 male ports
Programmable baud rate of up to 115,200 bps
WCH serial chipset
Single 3.3V operation
256-Byte transmit/receive FIFO
Compatible with 16C550/16C552/16C554 and 16C750 UART
Bus Specifications
PCI Express x1
Bus speed: 2.5 Gbps
Compliant with PCI Express 1.1 specifications
Compliant with PCI Power Management 1.2 specifications
Physical
Dimensions (with regular bracket): 12 x 6.8 x 2 cm (4.7 x 2.6 x 0.8 in.)
Weight (with regular bracket): 53.8 g (1.9 oz.)
System Requirements
Windows XP/Vista/7/8.1/10
PCI Express-enabled system with an available PCI Express slot
CD-ROM drive
Package Contents
Serial PCI Express Card
Two low-profile brackets
Instructions and driver CD
