Overview

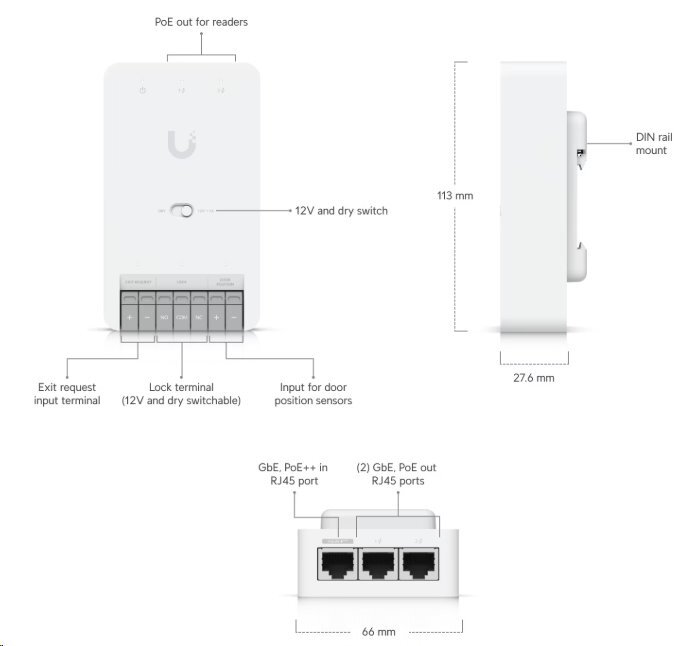

Dimensions
113 x 66 x 27.6 mm
(4.4 x 2.6 x 1.1")
Supported Doors
1
Input Terminals
(1) Door exit request
(1) Door position
Power Method
PoE++
UniFi Application Suite
Access
Mechanical
Weight
190 g (6.7 oz)
Enclosure Material
Polycarbonate, metal
Mounting
DIN-rail (Included)
Hardware
Indoor and Outdoor Use
Indoor only
Ambient Operating Temperature
-10 to 40° C
(14 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(3) GbE RJ45 ports
PoE Interface
(1) PoE++ input, 50V DC, 1A
(2) PoE outputs, total 31W
Max. Power Consumption
19W (Without PoE output)
50W (With PoE output)
Dry Output Relay
30V DC, 1A
Wet Output Relay
12V DC, 1A
LEDs
W/B Learn More
Buttons
(1) Factory-reset
(1) Dry/Wet switch
Recommend Max. Cable Length
UA-Lock-Electric
(400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
Certifications
CE, FCC, IC
Document number, and issue date and/or revision level
UA-Hub-Door-Mini, V01
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
