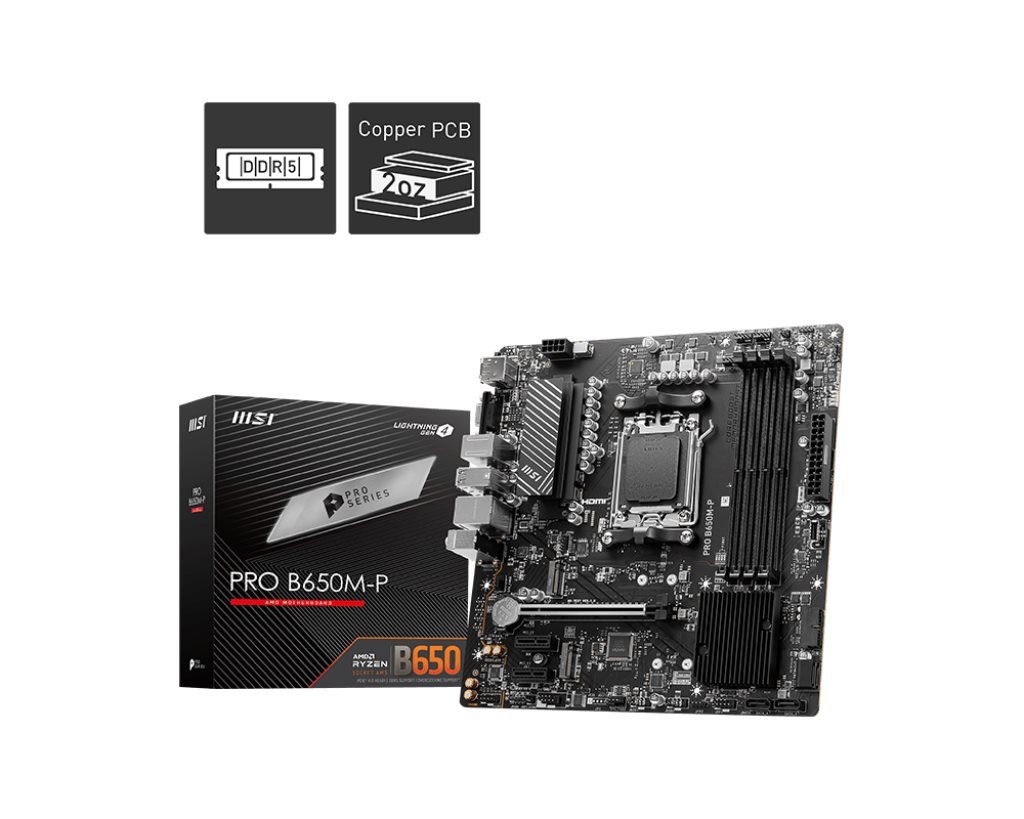

MSI PRO B650M-P

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CPU

Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5

CHIPSET

AMD B650

MEMORY

4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO

GRAPHICS

1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupports DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 1920x1200 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GSupports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)2x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)

LAN

Realtek 8125BG 2.5G LAN

AUDIO

Realtek ALC897 Codec7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL I/O PORTS

1x DisplayPort1x VGA1x Keyboard / Mouse2x USB 2.01x 2.5G LAN3x Audio connectors1x Flash BIOS Button1x HDMI™2x USB 2.02x USB 3.2 Gen 1 5Gbps (Type-A)2x USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

mATX243.84 x 243.84 mm
