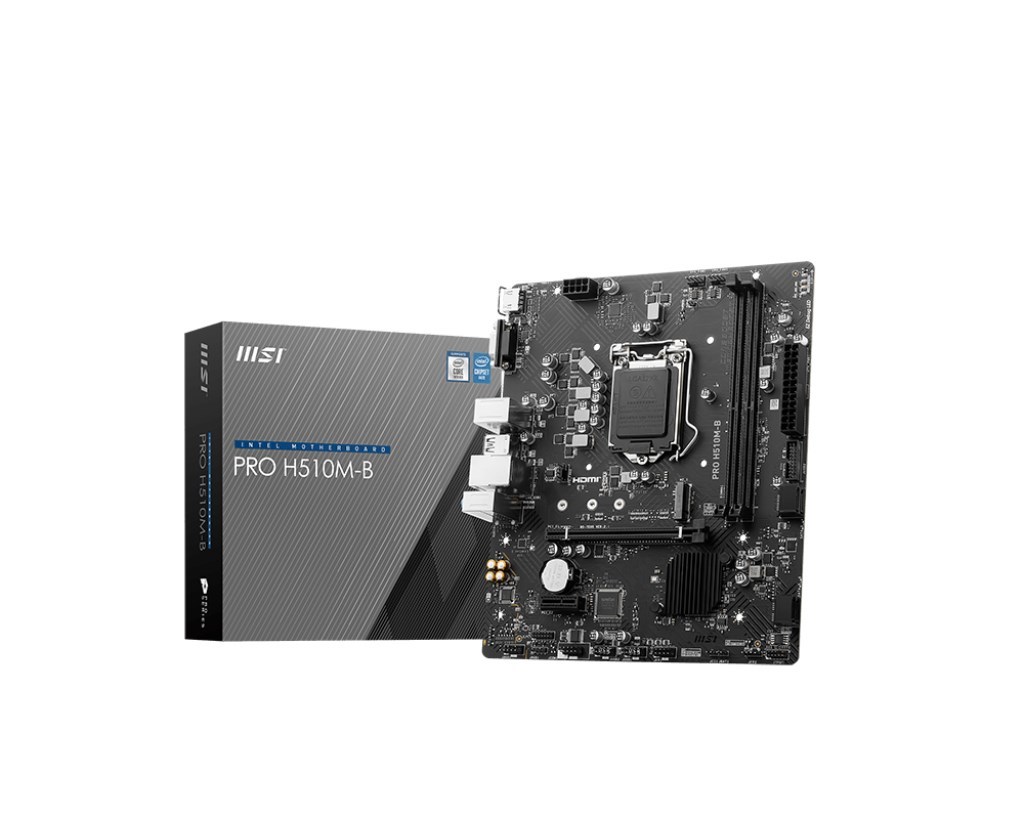

MSI PRO H510M-B

• Supports 10th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933MHz (MAX)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU

Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Chipset

INTEL H470

Memory

2x DDR4, Maximum Memory Capacity 64GBMemory Support 2933/ 2666/ 2400/ 2133 MHzSupports 1R 2133/ 2666/ 2933 MHz for Intel Core™ i9/ Core™ i7 CPUSupports 1R 2133/ 2666 MHz for Intel Core™ i5/ Core™ i3/ Pentium Gold and Celeron CPUSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)

Graphics

1x HDMI™Support HDMI™ 1.4, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion slot

1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G

USB

4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek 8111H Gigabit LAN

Audio

Realtek ALC897 Codec7.1-Channel USB High Performance Audio

Internal I/O ports

1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports

LED

4x EZ Debug LED

Back Panel I/O ports

1x HDMI™1x VGA1x Keyboard / Mouse2x USB 3.2 Gen 1 5Gbps (Type-A)1x LAN port3x Audio Connectors4x USB 2.0

Operating system

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX202 x 236 mm

Accessories

1x M.2 Screw1x Sata cable1x I/O Shield
