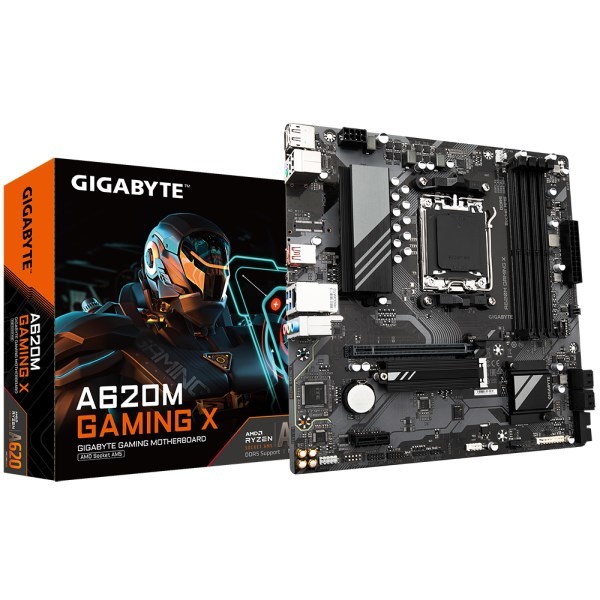

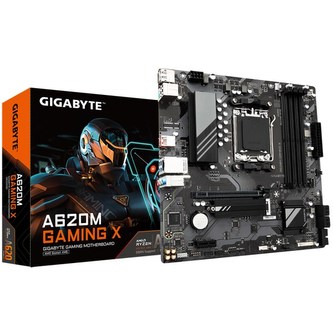

A620M GAMING X

• AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
• Unparalleled Performance:8+2+1 Phases Digital VRM Solution
• Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
• SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
• PCIe x16 EZ-Latch with Quick Release & Screwless Design
• Fast Networks:GbE LAN
• Extended Connectivity:DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer "CPU Support List" for more information.)

Chipset

AMD A620

Memory

Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Audio

• Realtek Audio CODEC
• High Definition Audio

2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Back Panel Connectors

1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
