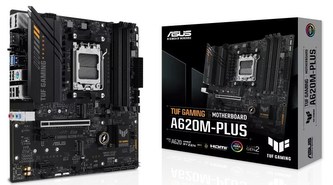

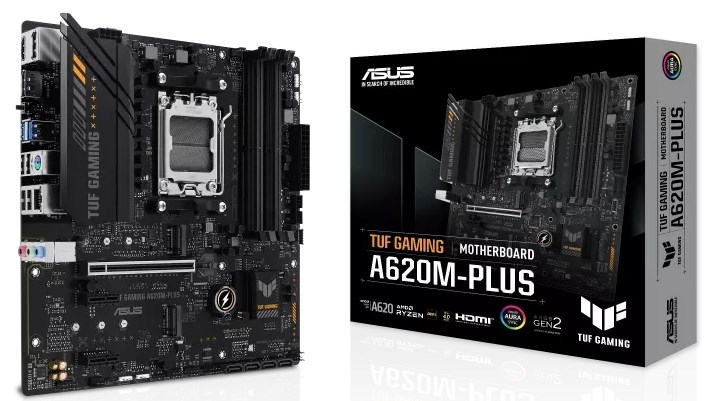

ASUS MB TUF GAMING A620M-PLUS

TUF GAMING A620M-PLUS is equipped with outstanding features, including 6-layer PCB design, DDR5 6400+(OC), Massive VRM Heatsink, PCIe 4.0 support, dual M.2 slots, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack™, 2 x DisplayPort, HDMI™, Addressable Gen 2 headers, Aura RGB header, Aura Sync, M.2 Q-Latch, Q-LED Core, ASUS OptiMem II, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation, Armoury Crate, ASUS TUF PROTECTION and SafeSlot Core+, which will bring users maximizing performance, stability and compatibility for the very best DIY PC experiences.

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

• Refer to www.asus.com for CPU support list.

Chipset

AMD A620 Chipset

Memory

4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

2 x DisplayPort1 x HDMI™ port* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Support max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620 Chipset 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB

Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playbackAudio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Ports

Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header

Special Features

ASUS TUF PROTECTION

• DIGI+ VRM
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• BIOS FlashBack™ LED

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• Norton 360 for Gamers (60 Days Free Trial)

WinRAR UEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
