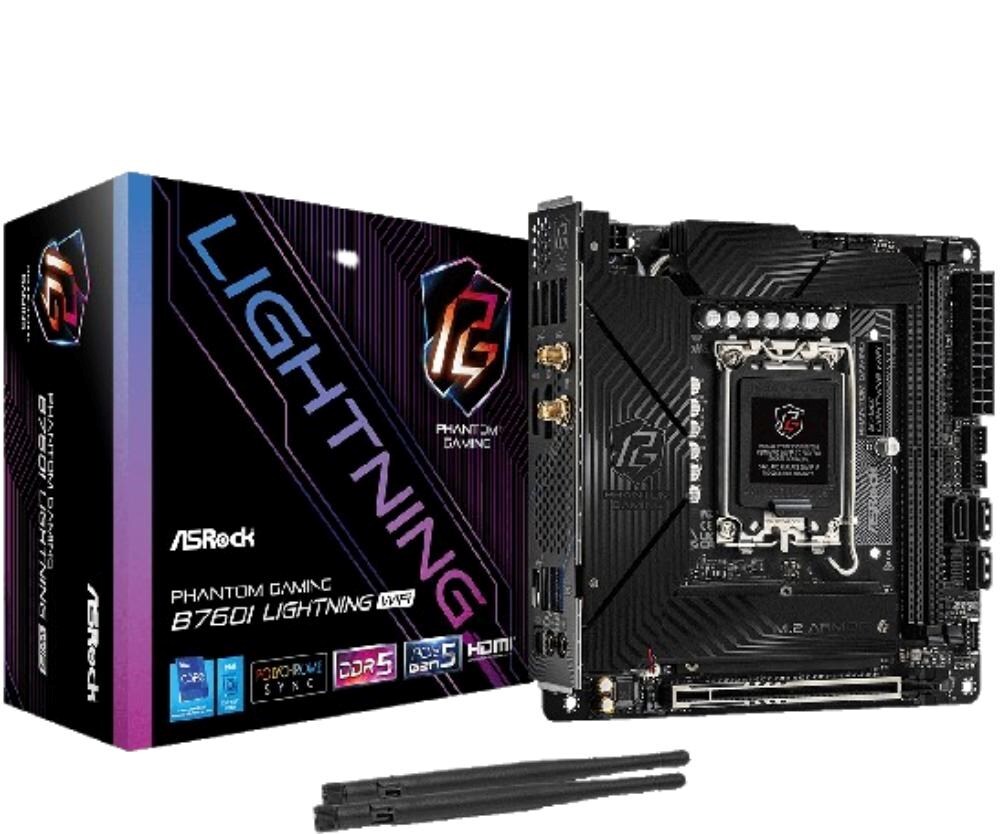

ASRock B760I Lightning WiFi

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning - a spectacle of raw energy and breathtaking speed.

Unique Feature

Superb Productivity- PCIe Gen5 (Graphics)- Dual Channel DDR5Rock-Solid Durability- Server-Grade Low-Loss PCB- 14+1+1 Power Phase, SPS for VCore+GT with Enlarged Heatsink Armor- Flexible Integrated I/O ShieldUltrafast Gaming- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer

CPU

- Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)

Chipset

- Intel B760

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8600+(OC)*- Max. capacity of system memory: 128GB- Supports Intel Extreme Memory Profile (XMP) 3.0

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

Wireless LAN

- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3 + High speed class II- Supports MU-MIMO

Slots

CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 3 x SATA3 6.0 Gb/s Connectors- Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices

USB

Chipset:- 1 x USB 3.2 Gen2 Type-A (Rear)- 1 x USB 3.2 Gen2 Type-C (Rear)- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)- 1 x USB 3.2 Gen1 Type-C (Front)- 1 x USB 2.0 (Front)

Internal I/O

- 2 x Addressable LED Headers*- 1 x Thermistor Cable Header- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 2 x Chassis Fan Connectors (4-pin)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O

- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 4 x USB 3.2 Gen1 Ports- 1 x RJ-45 LAN Port- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer

Accessories

- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Screw for M.2 Socket- 1 x Thermistor Cable

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- 8 Layer PCB- 2oz Copper PCB

OS

- Microsoft Windows 10 64-bit / 11 64-bit

OS

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
