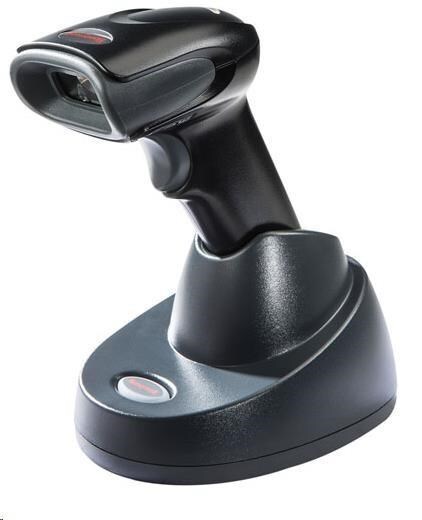

Bluetooth scanner, 2D, imager, Bluetooth, IP40, incl.: cable (USB, straight, 3 m, black), charging/transmitter cradle, colour: black

The Honeywell Voyager Extreme Performance (XP) 1472g is a reliable 2D scanner for retail. It is designed to read difficult-to-capture 1D and 2D barcodes, as well as DotCodes and digital vouchers from a smartphone or tablet - even if the barcodes are damaged or difficult to read. Together with the increased flexibility, due to its wireless design, it simplifies work and helps save time.

The multi-interfaces of the Voyager XP 1472g always ensure good performance and include USB, keyboard wedge (KBW), RS232 and RS485 with support for IBM 46XX. It is also robust: it withstands multiple falls from heights of up to 1.8 meters and is protected against the penetration of foreign bodies up to 1 mm and diagonally falling dripping water according to IP42 certification. Plus, the Voyager XP 1472g is fully backwards compatible with existing accessories. There are no additional costs for optional accessories and the total cost of ownership is lower. WIRELESSRadio/Range: 2.4 GHz to 2.5 GHz(ISM Band)Adaptive Frequency HoppingBluetooth v4.230 m (98 ft) line of sight with Honeywellcharger/communication basePower Options:Battery: 2400 mAh Li-ion minimumNumber of Scans: Up to 50,000scans per chargeExpected Duration of Operation:14 hoursExpected Charge Time: 4.5 hoursUser Indicators: Good Decode LEDs, RearView LEDs, Beeper (adjustable tone andvolume), Vibration (adjustable), ChargeStatus Indicator

MECHANICAL/ELECTRICALDimensions (L x W x H): 62 mm x 173 mm x82 mm (2.5 in x 6.8 in x 3.2 in)Charger/Communication Base: (CCB01-010BT-V1N) 132 mm x 102 mm x 81 mm(5.2 in x 4.0 in x 3.2 in)Scanner Weight: 210 g (7.4 oz)Charger/Communication Base: 179 g(6.3 oz)Operating Power (Charging): Charger/Communication Base: 179 g (6.3 oz)Standby Power: Charger/CommunicationBase: 0.5 W (0.1A @ 5V)Host System Interfaces: USB, KeyboardWedge, RS-232, RS485 support for IBM46xx (RS485)

ENVIRONMENTALOperating Temperature:Scanner:Charging: 5°C to 40°C (41°F to 104°F)Non-Charging: 0°C to 50°C(23°F to 122°F)Charger/Communication Base:Charging: 5°C to 40°C (41°F to 104°F)Non-Charging: 0°C to 50°C(32°F to 122°F)Storage Temperature:Scanner:For storage up to 90 days: -20°C to35°C (-4°F to 95°F)For storage up to 1 year: -20°C to 20°C(-4°F to 68°F)Charger/Communication Base: -40°C to70°C (-40°F to 158°F)Electrostatic Discharge (ESD) (Scannersand Cradles): ±8 kV indirect coupling plane,±15 kV direct airHumidity: 0% to 95% relative humidity,non-condensingTumble Spec: 1,000 0.5 m (1.6 ft)tumbles (impacts)Drop: Engineered to withstand 30 1.8 m(6 ft) drops to concreteEnvironmental Sealing: IP42Light Levels: 0 to 100,000 lux(9,290 foot-candles)

SCAN PERFORMANCEScan Pattern: Area Image(1040 x 720 pixel array)Motion Tolerance: 70 cm/s (27.6 in/s) for13 mil UPC at optimal focusScan Angle:Horizontal: 39.2° nominalVertical: 27.4° nominalRoll, Pitch, Skew: ±180°, ±65°, ±70°Barcode Types: Reads standard 1D, PDF,2D, and DotCode symbologiesNote: Decode capabilities dependent onconfiguration.
