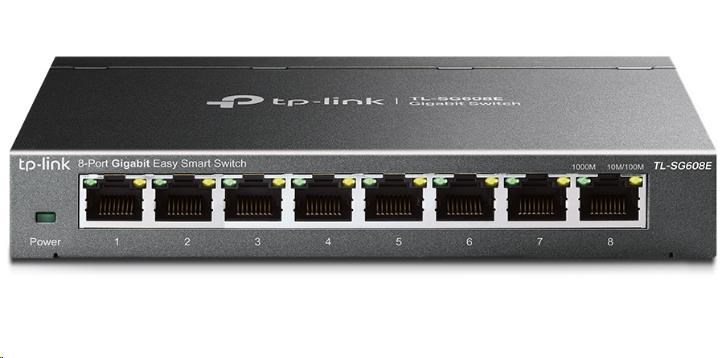

TP-Link switch TL-SG608E

8portový gigabitový Easy Smart switch

• 8× 10/100/1000 Mbps RJ45 portů
• Plug and play, bez nutnosti konfigurace
• Odolné kovové pouzdro špičkové kvality a profesionálního vzhledu
• Inteligentní správa prostřednictvím webového uživatelského rozhraní a nástroje ke stažení
• Green technology snižuje spotřebu energie

Stránky produktu: https://www.tp-link.com/uk/business-networking/smart-switch/tl-sg608e/

Technické specifikace

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
8 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter(Output: 5 VDC/ 0.6 A)

Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption
3.68 W (220 V/ 50 Hz)

Max Heat Dissipation
12.55 BTU/h

PERFORMANCE

Switching Capacity
16 Gbps

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4 K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Quality of Service
Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control

L2 Features
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG608E Power Adapter Installation Guide Rubber Feet

System Requirements
Microsoft Windows for running Utility

Environment
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
