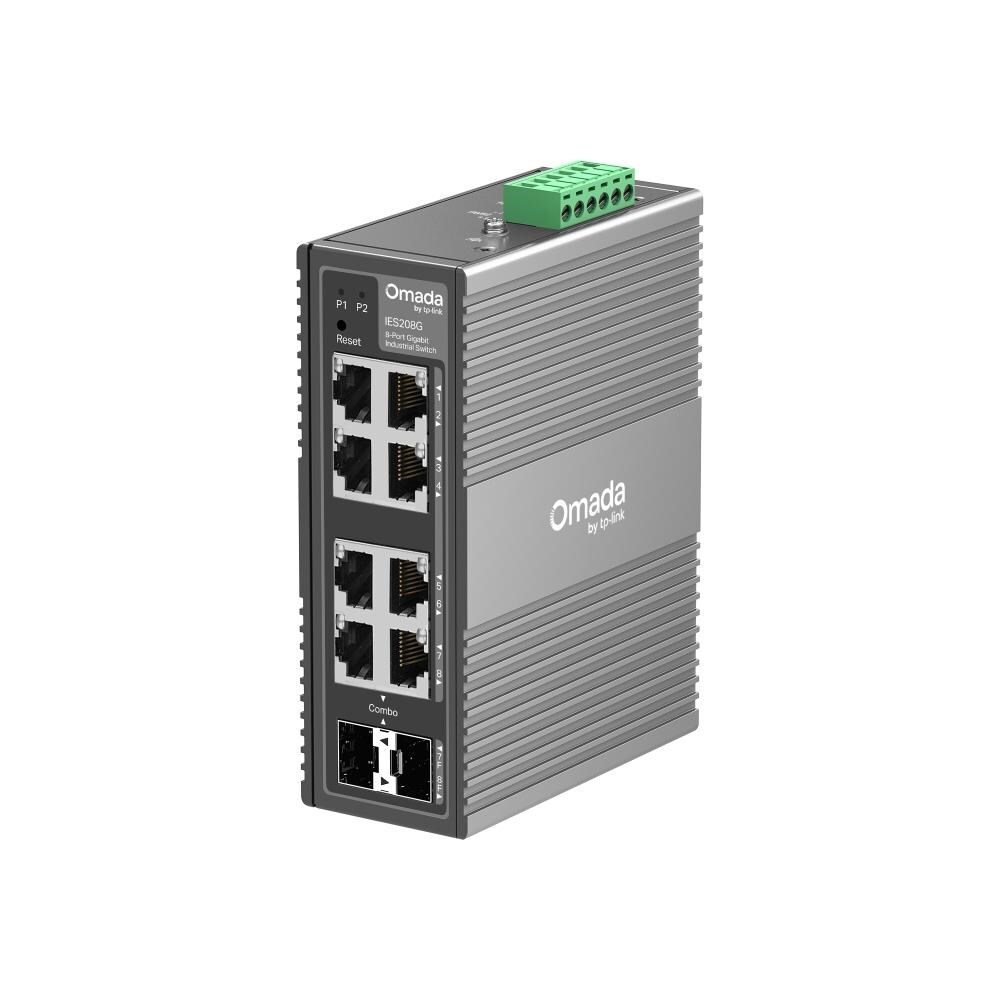

TP-Link OMADA průmyslový switch IES208G

Omada 8portový gigabitový průmyslový Easy Managed switch

• 8× gigabitových portů (6× RJ45, 2× RJ45/SFP Combo)
• Profesionální průmyslové provedení: -40°C~75°C provozní teplota, 6 kV přepěťová ochrana a 1+1 redundantní napájecí vstup
• Bohatá výbava: VLAN, QoS a STP/RSTP
• Centralizovaná cloudová správa přes web nebo aplikaci Omada†
• Odolný hliníkový kryt s krytím IP40 a konstrukce pro montáž na DIN lištu / na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies208g

Technické specifikace

HARDWARE FEATURES
Interface • 6× 10/100/1000 Mbps RJ45 Ports

• 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX

Fan Quantity Fanless
Installation • DIN-rail mounting

• Wall mounting

Power Supply 9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H ) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection • ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • 802.1p DSCP Priority

• 8 Priority Queues • Priority Schedule Mode

• WRR (Weighted Round Robin)

• Queue Weight Config • Bandwidth Control

• Port-Based Rate Limit

• Storm Control

• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control

L2 Features • Link Aggregation

• Static Link Aggregation
• Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection • Flow Control

• 802.3x Flow Control

• Mirroring

• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both

• Port Statistics

• Port Mirror Status
• Traffic Statistics

• 802.1ab LLDP • Spanning Tree

• STP (802.1d)
• RSTP (802.1w)

L2 Multicast • IGMP Snooping

• IGMP v1/v2/v3 Snooping
• Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN • 802.1Q Tag VLAN

• Max 32 VLAN Groups
• 4K VID

Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller • Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI

• DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content • IES208G

• DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide

Environment • Operating Temperature: -40?~75? (-40?~167?)

• Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
