WIRELESS
Standards and Protocols Wi-Fi 7

• IEEE 802.11be/ax/ac/n/a 5 GHz
• IEEE 802.11be/ax/n/b/g 2.4 GHz

WiFi Speeds BE3600

5 GHz: 2882 Mbps (802.11be) 2.4 GHz: 688 Mbps (802.11be)

WiFi Range Broader Whole Home Coverage

TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 4× High-Performance Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity Very High

• Dual-Band
• Distribute devices to different bands for optimal performance
• OFDMA
• Simultaneously communicates with multiple WiFi 7 clients

4 Streams More than enough bandwidth for connected devices

Working Modes Router Mode

Access Point Mode

Advanced Features • Multi-Link Operation (MLO)

• 160 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant

SECURITY
Network Security SPI Firewall

• Access Control
• HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

• Effective Time
• Bandwidth Control

VPN Server • OpenVPN Server

• PPTP VPN Server • L2TP/IPSec VPN Server

VPN Client • OpenVPN Client

• PPTP VPN Client • L2TP/IPSec VPN Client

WiFi Encryption WPA-Personal

• WPA2-Personal
• WPA3-Personal

HARDWARE
Ethernet Ports • 2× 1.0 Gbps

*Per Deco Unit Supports WAN/LAN auto-sensing

Buttons 1× Reset Button

1× WPS

SOFTWARE
Advanced Features • Reboot Schedule

• Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Routing Function • Node/Band Connection Preference

Protocols IPv4

IPv6

Service Kits HomeShield

Learn More>

Parental Controls HomeShield Parental Controls

• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet

Weekly and Monthly Reports

WAN Types Dynamic IP

• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service HomeShield QoS

QoS by Device

Cloud Service OTA Firmware Upgrade

• TP-Link ID
• DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

• IGMP Snooping
• Bridge

Tag VLAN

DHCP Address Reservation

• DHCP Client List
• Server

DDNS TP-Link
Management Features Deco App
OTHER
Network Services Enabled by Default Web Server

Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP

• DNS
• DNS

• Port: 53 Protocol: TCP & UDP

• DHCP Server
• IP address assignment (DHCP)

• Port: 67 Protocol: UDP

• App management
• Manage and configure device through app

• Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

PHYSICAL
Dimensions (W×D×H) 5.91 × 5.91 × 2.44 in (150 × 150 × 62 mm)
Package Content

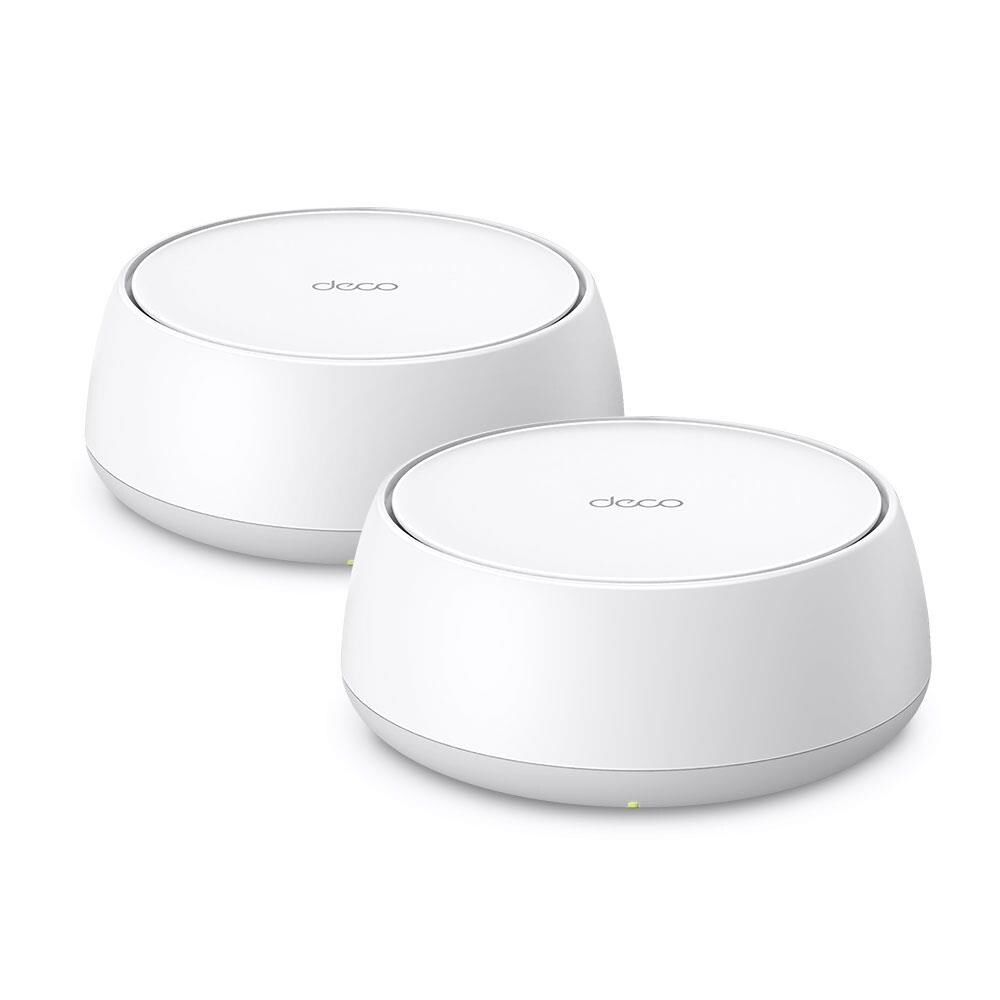

2 Deco BE22 unit 1 RJ45 Ethernet cable 2 Power adapter Quick Installation Guide

OTHERS
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)

• Storage Temperature: -40°C~60°C (-40 °F~140 °F)
• Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
