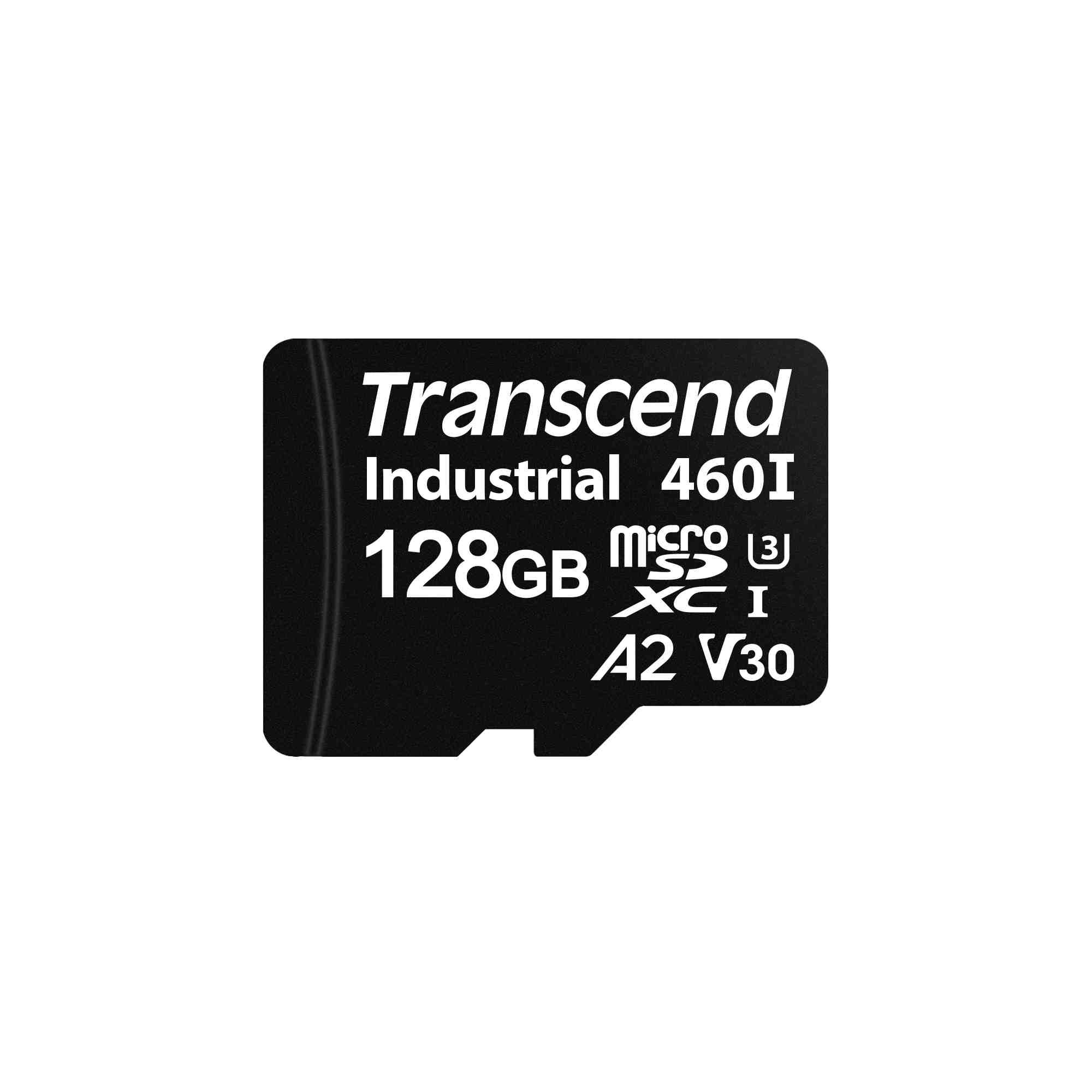

microSDXC 460I

Utilizing top-quality 3D NAND Flash and rated to endure 3K P/E cycles, Transcend\'s microSDXC 460T memory cards combine the advantages of high performance and exceptional endurance at an affordable price. They are ideal for write-intensive applications such as medical devices, surveillance systems, and POS terminals.Transcend also offers the microSDXC 460I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality and optimal reliability.

• Compliant with RoHS 2.0 standards
• Electrostatic protection (ESD IEC 61000-4-2)
• Compliant with SD specification 6.1
• Compliant with UHS-I
• Compliant with Video Speed Class 30 (V30)
• Compliant with Application Performance Class 2 (A2)
• Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
• Promised operational reliability in a wide temperature range (from -40°C to 85°C)
• Supports Transcend Scope Pro software

TECHNICAL SPECIFICATIONS

Dimensions
11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")

Form Factor
microSD flash card

Storage

Capacity
128 GB

Flash Type
112-layer 3D NAND flash

Operating Environment

Operating Temperature
Standard Temp.:-25°C (-13°F) ~ 85°C (185°F) Wide Temp.: -40°C (-40°F) ~ 85°C (185°F)

Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)

Operating Voltage
2.7V ~ 3.6V

Drop Test
1.5m free fall

Humidity
0% ~ 95%

Shock
Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)

Vibration (Operating)
20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Max.)
0.5 watt(s)

Performance

Read Speed (Max.)
up to 100 MB/s

Write Speed (Max.)
up to 80 MB/s

Terabytes Written (TBW)
up to 1343 TBW

Note
Speed may vary due to host hardware, software, usage, and storage capacity.Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty

Certificate
CE/FCC/UKCA

Warranty
Three-year Limited Warranty
