Popis produktu:

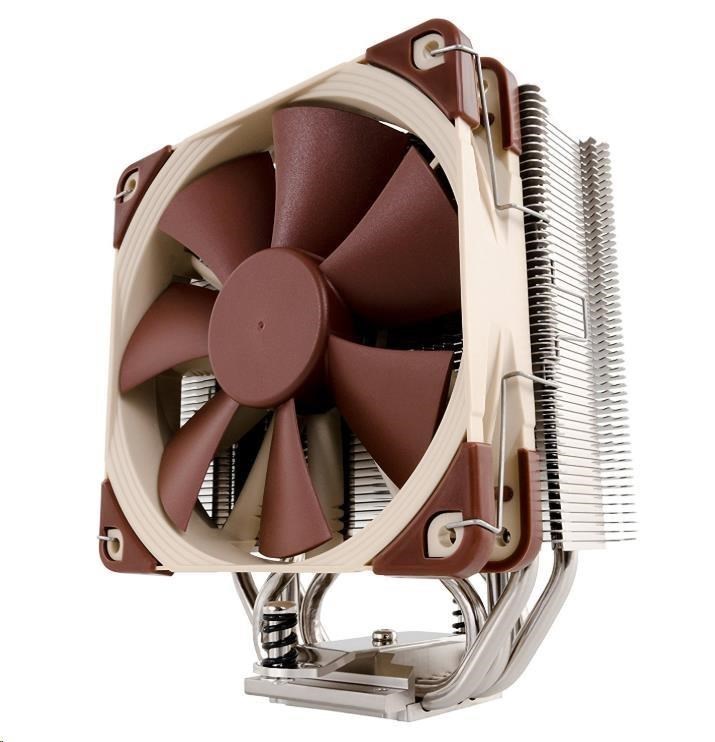

NH-U12S
• Rozměry: výška 158mm, bez ventilátoru váží 580 g (755 g včetně)
• Pasivem probíhá pětice heatpipe, dosahuje i s ventilátorem šířky 71 mm, což by mělo zaručovat 100% kompatibilitu i s vysokými pamětmi.
• Maximální otáčky ventilátoru NF-F12 dosahují 1500 ot./min., při použití dodávaného L.N.A. klesnou trvale na 1200 ot./min. a PWM regulace je dokáže snížit dle potřeby až na 300 ot./min.
• Při maximálních otáčkách by hlučnost neměla přesáhnout 23 dB(A) a s L.N.A. by se měla pohybovat těsně pod hranicí 19 dB(A).
• Životnost je 150 000 hodin MTBF.
• Obsah balení: L.N.A., teplovodivá pasta NT-H1 a úchytný systém SecuFirm2., který podporuje všechny v součastnosti používané patice včetně Intel LGA 1150 či AMD FM2.

The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.

Socket compatibility Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 (backplate required)
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm
Weight (without fan) 580 g
Weight (with fan) 755 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 120x120x25
Scope of Delivery
NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge

Fan specifications
Model Noctua NF-F12 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM) 300 RPM
Max. Airflow 93,4 m3/h
Max. Airflow with L.N.A. 74,3 m3/h
Max. Acoustical Noise 22,4 dB(A)
Max. Acoustical Noise with L.N.A. 18,6 dB(A)
Input Power 0,6 W
Voltage Range 12 V
MTBF > 150.000 h
