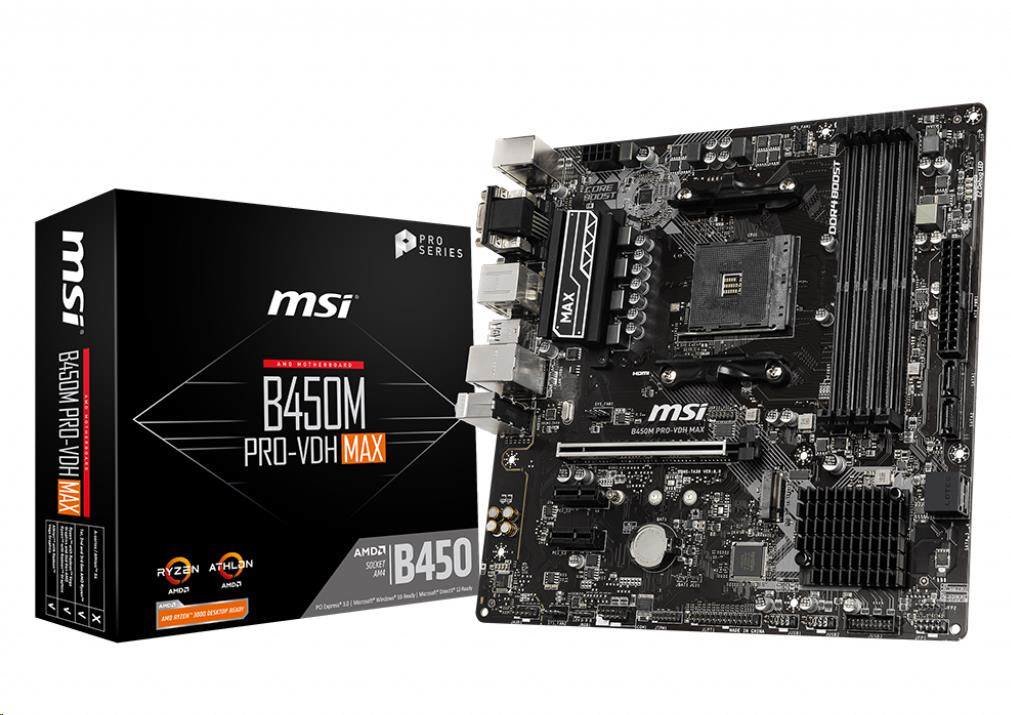

B450M PRO-VDH MAX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 3466+(OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Audio Boost: Reward your ears with studio grade sound quality.
• EZ Debug LED: Easiest way to troubleshoot
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

TECHNICAL SPECIFICATIONS

SOCKET
AM4

CPU (MAX SUPPORT)
Ryzen 9

CHIPSET
AMD B450 Chipset

DDR4 MEMORY
1866/ 2133/ 2400/ 2667Mhz (by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/2800/2933/3000/3066/3200/3466/3733/3866 by A-XMP OC modeFor AMD Other CPU2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode

MEMORY CHANNEL
Dual

DIMM SLOTS
4

MAX MEMORY (GB)
64

PCI-E X16
1

PCI-E X1
2

SATAIII
4

M.2 SLOT
1

TPM (HEADER)
1

LAN
1x Realtek 8111H Gigabit LAN controller

USB 3.2 PORTS (FRONT)
2 (Gen1, Type A)

USB 3.2 PORTS (REAR)
4 (Gen1, Type A)

USB 2.0 PORTS (FRONT)
4

USB 2.0 PORTS (REAR)
4

SERIAL PORTS (FRONT)
1

PARALLEL PORT (FRONT)
1

AUDIO PORTS (REAR)
Realtek ALC892 Codec

DVI-D
1

VGA
1

HDMI
1

DIRECTX
12

FORM FACTOR
m-ATX

OPERATING SYSTEM
Support for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
