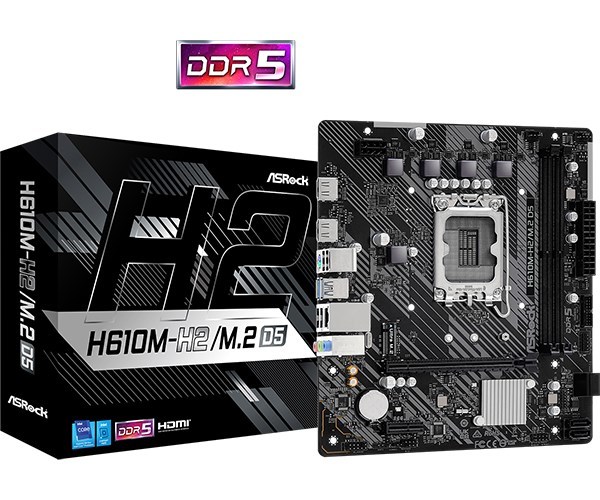

ASRock H610M-H2/M.2 D5

• Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
• 3+1+1 Phase Power Design
• Supports DDR5 5600MHz*
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

CPU

- Supports 13th Gen & 12th Gen Intel CoreTM Processors (LGA1700)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology

Chipset

- Intel H610

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- 13th Gen Intel CoreTM Processors support DDR5 non-ECC, un-buffered memory up to 5600*- 12th Gen Intel CoreTM Processors support DDR5 non-ECC, un-buffered memory up to 4800*- Max. capacity of system memory: 96GB- Supports Intel Extreme Memory Profile (XMP) 3.0* Actual support may vary by CPU* Please refer to Memory Support List on ASRock\'s website for more information. (http://www.asrock.com/)

Expansion Slot

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2) Supports NVMe SSD as boot disks

Graphics

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Intel Xe Graphics Architecture (Gen 12)- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s- Realtek 8111H

USB

- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)- 6 x USB 2.0 (4 Rear, 2 Front)* All USB ports support ESD Protection

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports- 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks

Internal I/O

- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

BIOS Feature

- 128Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode- ASRock Full HD UEFI - ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Accessories

- 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables - 1 x Screw for M.2 Socket

Unique Feature

Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 3+1+1 Power Phase EZ Update - ASRock Auto Driver Installer

Form Factor

- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
